隔膜泵型號編制方法 Establishment method of pump model

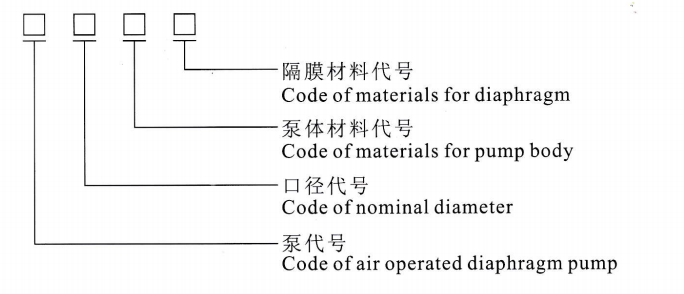

泵型號由四個單元組成按下列順序編制

The pump model is composed of four units and is established according to the following sequence

口徑代號 Code of nominal diameter:8(5/16),10(3/8),15(1/2),25(1),40(11/2),50(2),80(3)

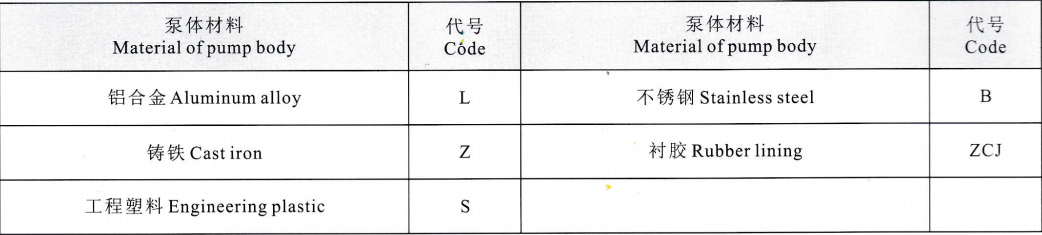

泵體材料代號 Code of materials for pump body

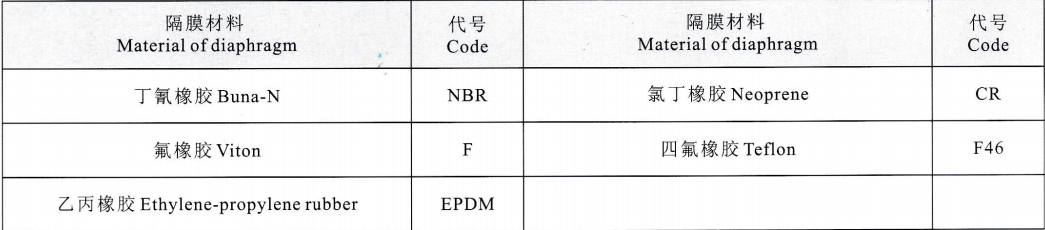

隔膜材料代號 Code of materials for diaphragm

本公司QBK系列氣動隔膜泵有兩大系列,其中QBK1出口在中間,QBK2出口在側邊。訂貨時,要告之使用環境

溫度、介質、流量、揚程、壓力、泵體材料、隔膜材料

environment, temperature, medium flow rate, head, pressure, materials of pump body and diaphragm when order. SIde connection. Please specify

We have two main series of QBK product, one is QbKI which with center connection, the other is QBK2 with

產品概述 Performance summary

QBK氣動隔膜泵是我公司開發的第三代氣動隔膜泵,具有使用壽命長,不會停頓等優點,它既能抽送流動的液體,又能輸送一些不易流動的介質,具有自吸泵、潛水泵、屏蔽泵、泥漿泵和雜質泵等輸送機械

的許多優點。

1、不需灌引水,吸程高達5m,揚程達70m,出口壓力≥6bar

2、流動寬敞,通過性能好,允許通過最大顆粒直徑達10mm。抽送泥漿、雜質時,對泵磨損甚微;

3、揚程、流量可通過氣閥開度實現無級調節(氣壓調節在1-7bar之間)

4、該泵無旋轉部件,沒有軸封,隔膜等抽送的介質與泵的運動部件、工件介質完全隔開,所輸送的介質不會向外泄漏。所以抽送有毒、易發揮或腐蝕性介質時,不會造成環境污染和危害人身安全

5、不必用電。在易燃、易爆場所使用安全可靠。

6、可以浸沒在介質中工作

7,使用方便、工作可靠、開停只需簡單地打開和關閉氣體閥門,即使由于意外情況而長時間無介質運行或突然停機,泵也不會因此而損壞

旦超負荷,泵會自動地停機,具有自我保護性能,當負荷恢復正常后,又能自動啟動運行。

8、結構簡單、易損件少,該泵結構簡單,安裝、維修方便,泵輸送的介質不會接觸到配氣閥,聯桿等運動部件,不象其他類型的泵因轉子、活塞、齒輪、葉片等部件的磨損而使性能逐步下降

9、可輸送較粘的液體(粘度在1萬厘泊以下)

10、本泵無須用油潤滑,即使空轉,對泵也無任何影響,這是該泵最大特點。

QBK is coosai's new developed series of AODd pump which is also the third generation, it has the virtue of long service life

and nonstop operation, not only it can convey some uneasy flowed medium, with the merits the merits of self-pumping pump,

diving pump, shield pump, slurry pump and impurity pump etc

1.Ir's unnecessary to pour the drawing water, the suction lift reaches 5m height, the delivery lift reaches 70m length

2. Wide flow and good performance. The diameter allowed to pass the max grain reaches 10mm. The damage is very less to

the pump while exhausting the slurry and impurit

3. The delivery lift and flow can pass the pneumatic valve open to realize the step less adjustment( the pneumatic pressure

adjust ment is between 1-7bar)

4.This pump has no rotary parts and no bearing seals. The diaphragm will completely separate the exhausted medium and

pump running parts, working medium. The conveyed medium can't be leaked outside. Thus it will not cause the environmental

pollution and human body safety dangerous while exhausting the toxin and flammable or corrosive medium

5. No electricity. It's safe and reliable while using in the flammable and explore places

6. It can be soaked in medium

7.It's convenient to use and reliable to work. Only open or close the gas valve body while starting or stopping. Even if no

medium operation or pausing suddenly for long time because of accident matters, the pump will not be damaged caused by this

Once over loading, the pump will automatically stop and possesses the self protection function. When the load recovers normally

it also can start automatically

8.Simple structure and less wearing parts. This pump is simple in structure, installation and maintenance. The medium

conveyed by the pump will not touch the matched pneumatic valve and coupling lever etc. Not like other kinds pumps, the

performance will drop down gradually because of the damages of rotor, gear and vane etc

9. It can transmit the adhesive liquid( the viscosity is below 10000 centipoises)

10.This pump needn t the oil lubricant. Even if idling, it has any influence to the pump. This is a characteristic of this pump

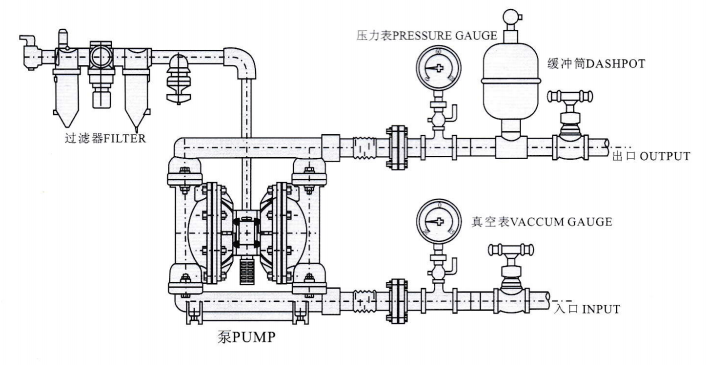

系統連接示意圖 System connection schematic diagram

備注:在使用QBK氣動隔膜泵時,要安裝空氣過濾器,以濾去壓縮空氣中的水分,并在泵的出口安裝壓力表,避免因壓力過高損害泵,在泵不工作時應及時清洗泵,避免因凝固損壞泵。

Note: When the air operated diaphragm pumpworks. install the air filter to leach the moisturefrom the compressed air, and install themanometer at the outlet of pump, so to avoid

damaging as too high pressure, when the pumpdoesn't need work, please clean it in time toprevent from concreting
